ABB FI830F 现场总线模件把模件集成到控制系统中

品牌：ABB

型号：FI830F

名称：现场总线模件

质保：一年

联系电话：18059884797

详细介绍

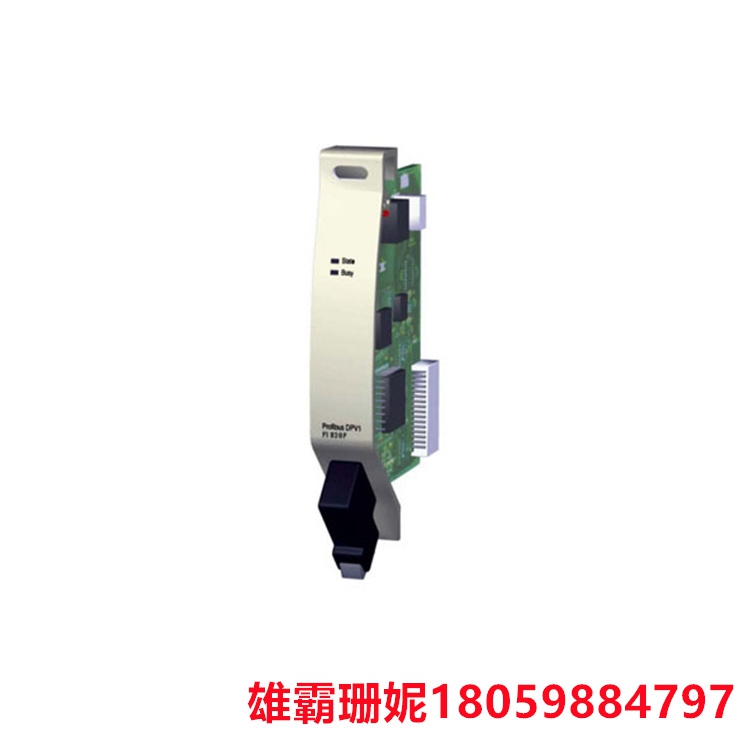

FI830F 现场总线模件

ABB AC800F控制器支持4个现场总线模件，分别为：CAN模件FI810F、串行接口模件FI820F、FrofiBUS模件FI830F、FF/HSE模件FI840F。总线类型可以根据控制要求自由选择。ABB AC800F控制器设计4个槽位F1到F4来安装不同类型的标准总线模件，除了CAN总线模件必须位于F1槽外，其它类型模件可以在这些槽之间任意安装．每个总线模件都具备：

一个直接的控制器用于将来自ABB AC800F的并行数据流转换为适于各总线协议的串行数据，总线协议软件需要由ABB AC800F控制器处理。

一个独立的协处理器系统通过双端口或共享内存技术提供与ABB AC800F CPU主板的数据交换

为了提高系统的运行性能，各自模件的总线与ABB AC800F CPU主板非常紧密直接的连接，这样可以在控制器运行的情况下独立更换每个总线模件，一般遵循下列三步进行：

插入新模件
将模件上边的开关切到左边位置，启动模件
加载模件的协议驱动及组态的硬件程序，把模件集成到控制系统中

The ABB AC800F controller supports four fieldbus modules, namely: CAN module FI810F, serial interface module FI820F, FrofiBUS module FI830F, and FF/HSE module FI840F. The bus type can be freely selected according to control requirements. The ABB AC800F controller is designed with four slots F1 to F4 to install different types of standard bus modules. Except for the CAN bus module, which must be located in the F1 slot, other types of modules can be installed between these slots. Each bus module has:
A direct controller is used to convert parallel data streams from ABB AC800F into serial data suitable for each bus protocol, and the bus protocol software needs to be processed by the ABB AC800F controller.
An independent coprocessor system provides data exchange with ABB AC800F CPU motherboard through dual port or shared memory technology
In order to improve the operational performance of the system, the buses of each module are closely and directly connected to the ABB AC800F CPU motherboard. This allows for independent replacement of each bus module while the controller is running, generally following the following three steps:
Insert new module
Switch the switch on the top of the module to the left position and activate the module
Load the protocol driver and configuration hardware program of the module, and integrate the module into the control system
